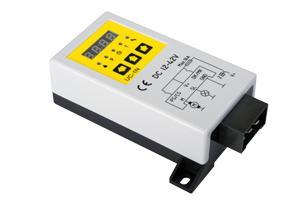

 Universal Control Unit UC-1N
|
|
| |
Universal Control Unit UC-1N is a new controller designed for controlling and monitoring of centralized Lubrication systems. It’s widely used on engineering machinery, vehicles and single line centralized lubrication systems.
Complete and powerful control functions
• Independent protective
housing. Easy for installation
And more reliable.
• Free choice of TIMER mode and COUNTER mode for both LUBRICATION and PAUSE to meet all types of vehicle chassis lubrication control requirement.
• Pressure Switch monitoring function can monitor pressure build up situation in main pipe, which ensures lubrication system can reliable work.
• Cycle Switch monitoring function, supports progressive distributing systems’ monitoring. Can easily control strict lubrication system for engineering machinery.
• Supports Cycle Switch time monitoring function, to achieve more complex lubrication
system control.
• Enhanced DK (insert a lubrication) function facilitates debugging and system testing.
• 4-digit password protection, prevent programmed parameters being changed accidentally.
• Power down protection function enables UC-1N auto memories lubrication parameters when power down happens to the system. And continue carries out operation from the point of power-off. This function ensures the lubrication continuous and reliable.
• Accumulation and memory of working time and downtime, help user to better manage lubrication system.
• Can be extended with level monitoring and host interlocking functions (optional).
Convenient and easy operation
• 4-digit LED digital monitor displays operational status and parameter. Very friendly interface and easy to use.
• LED pilot lights on the panel convenient indicates system working condition.
• Film keypad operation with 3 keys. Easy and quick parameter setting improves operational efficiency.
• Tree structure operation menu, easy for review and setting.
Designed for industry environment
• Can work steady under a complicated power supply condition. The surge, sink, brief interruption and superposed strong interference of the industry power supply will not negative influence on controller.
• Aborative electromagnetic compatibility (EMC) design enables controller can work reliable in complicated electromagnetic environment and does not bring out harmful electromagnetic noises.
• Excellent acclimatization. Can work in a wide temperature range from -30℃ to 70℃. There is also waterproof type of connector for user to choose from. It can protect controller from humidity and dust.
High reliability on design and manufacture
• Design complies with industrial application standard makes the controller can work 24 hours continuously at high load.
• Control modes and parameters are stored in EEPROM for a long time without backup
power support.
• Latest developed high speed FLASH storage technology combined with EEPROM back-up storage technology. Quickly save the site data at the moment of power off. Solved the problem of data quickly storage when power-down happens. Highly guarantee the reliability of the lubrication control.
• Main electronic components are all Industrial level and high-temperature ageing and
stability treated; ensure the reliability of the whole control unit.
• SMT manufacturing technique with reinforcement treatment enables UC-2A can work
stable even under severe vibration condition.
...........................................................................................
