 Lubrication system controller UC-1A (AC version)
|
|
| |
Universal Control Unit UC-1A (AC version) is designed for controlling and monitoring of centralized lubrication systems. It is widely used in engineering machinery, chassis and lubrication stations of 100-220V.
Compact size controller offers complete control function

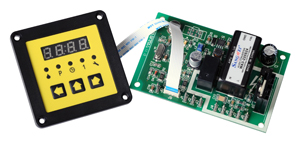

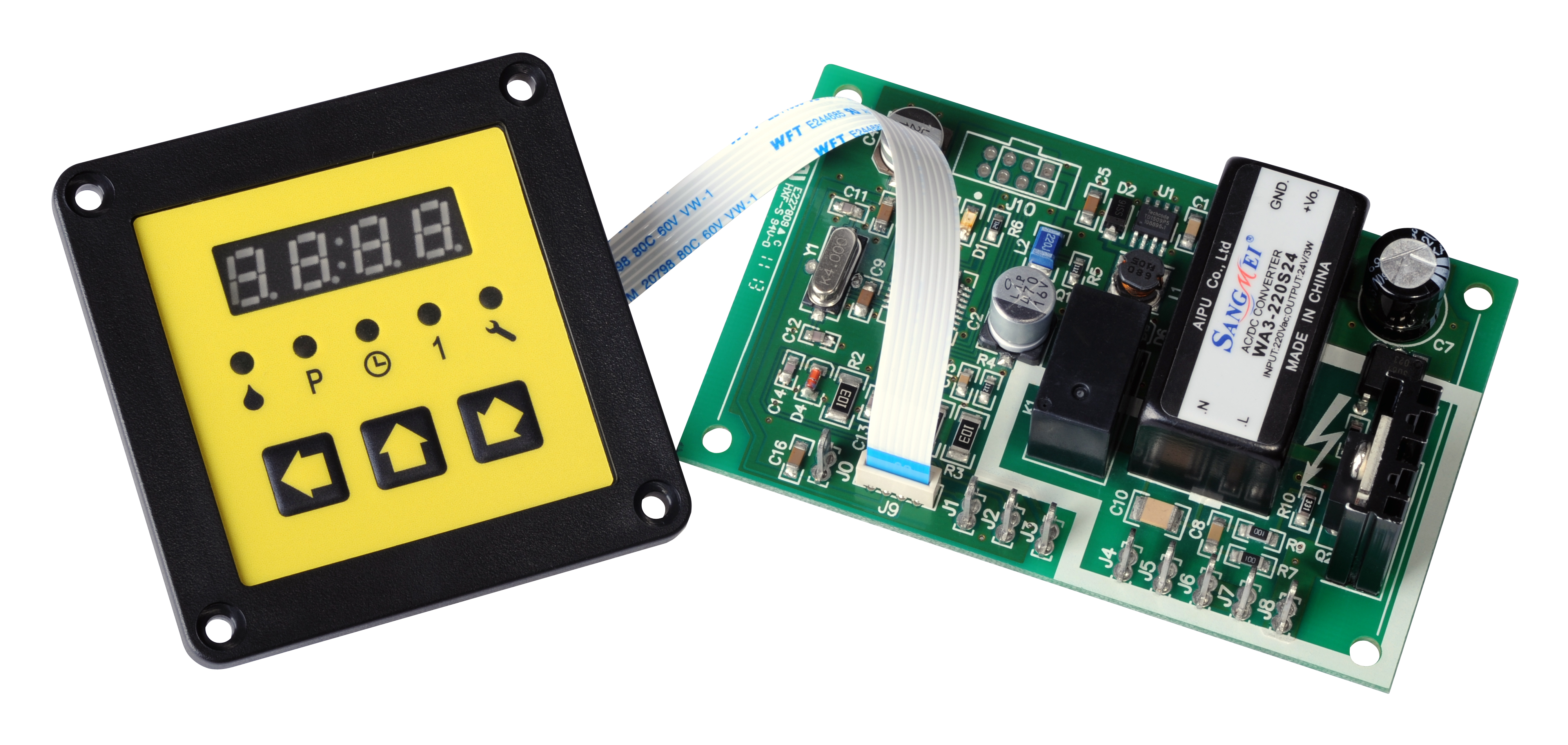

• Compact size, can be installed in a small space. Two separate designed PCBA makes it convenient and flexible for installing.
• Free choice of TIMER mode and COUNTER mode for both LUBRICATION and PAUSE to meet all types of vehicle chassis lubrication control requirement.
• Pressure Switch monitoring function can monitor pressure build up situation in main pipe, which ensures lubrication system can reliable work.
• Cycle Switch monitoring function, supports progressive distributing systems’ monitoring. Can easy control strict lubrication system like engineering machinery.
• Built-in DK (insert a lubrication) function, easy for installation and debugging and system testing.
• 4-digit password protection, prevent programmed parameters being changed accidentally.
• Power down protection function enables UC-1A auto memories lubrication parameters when power down happens to the system, and continue carries out operation from the point of power down. This function ensures the lubrication continuous and reliable.
Convenient and easy operation
• Displays information with 4 digits LED digital monitor, it is easy to use.
• LED signal lights indicate system-working status clearly.
• Film keypad operation with 3 keys. Comfortable hand feeling. Easy and quick parameter setting improves operational efficiency.
Designed for industry environment
• Can work steady under a complicated power supply condition. The surge, sink, brief interruption and superposed strong interference of the industry power supply will not negative influence on controller.
• Aborative electromagnetic compatibility (EMC) design enables UC-2A can work reliable in complicated electromagnetic environment and does not bring out harmful electromagnetic noises.
High reliability on design and manufacture
• Design complies with industrial application standard makes UC-2A can work 24 hours continuously at high load.
• Control modes and parameters are stored in EEPROM for a long time without backup power support.
• Latest developed high speed FLASH storage technology combined with EEPROM back-up storage technology. Quickly save the site data at the moment of power off. Solved the problem of data quickly storage when power-down happens. Highly guarantee the reliability of the lubrication control.
• Main electronic components are all Industrial level and high-temperature ageing and stability treated; ensure the reliability of the whole control unit.
• SMT manufacturing technique with reinforcement treatment enables UC-2A can work stable even under severe vibration condition.
...........................................................................................
